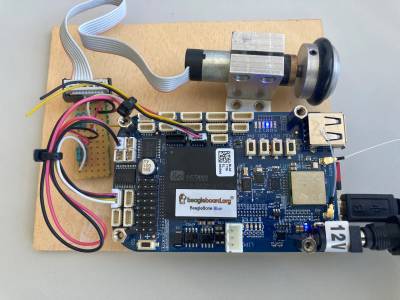

Experimental Setup with a Beaglebone Blue Board

Use a Beaglebone blue board. Connect all the necessary signals according to your hardware configuration file.

Analog Output

There are 4 connectors denoted with DC Motors. Connect number 1 with the motor. Before testing plug in the 12V DC power supply or the Li-Po battery, otherwise the motors won't run. ssh into the Beaglebone blue board and run

ost@bblue:$ rc_test_motors -m 1 -d 1

-m 1 selects the first motor while -d 1 specifies a duty cycle of 1. The motor should run in positive direction. If the motor turns in the opposite direction, change the + and - wire of the motor. You can stop the program by pressing Ctrl-C. The test program is located in /usr/bin and can be run from anywhere.

Enable Signal

On the Beaglebone blue we do not use a motor controller and therefore, we do not use this signal. However, we put the signal onto the green led on the board.

Encoder Inputs

There are 4 connectors denoted with 4 Quadrature encoder inputs. Connect number 1 with your encoder. Make sure that your encoder works with 3.3V as delivered by this connector. Test the encoder with

ost@bblue:$ rc_test_encoders

Turning the motor in positive direction must lead to the encoder counting upwards. If not, change the A and B signals.

Ready Signal

The ready signal signals to the controller that the motor controller has powered up. As there is no external motor controller on the Beaglebone blue we simply put this signal on a digital input pin which is connected to the on board push button Mode.

Emergency Signal

The emergency signal is used to bring the application in a safe mode. We put this input signal on a digital input pin which is connected to the on board push button Pause. Later when the application runs we can cause the safety system to switch to an emergency state by pressing the Pause button.
